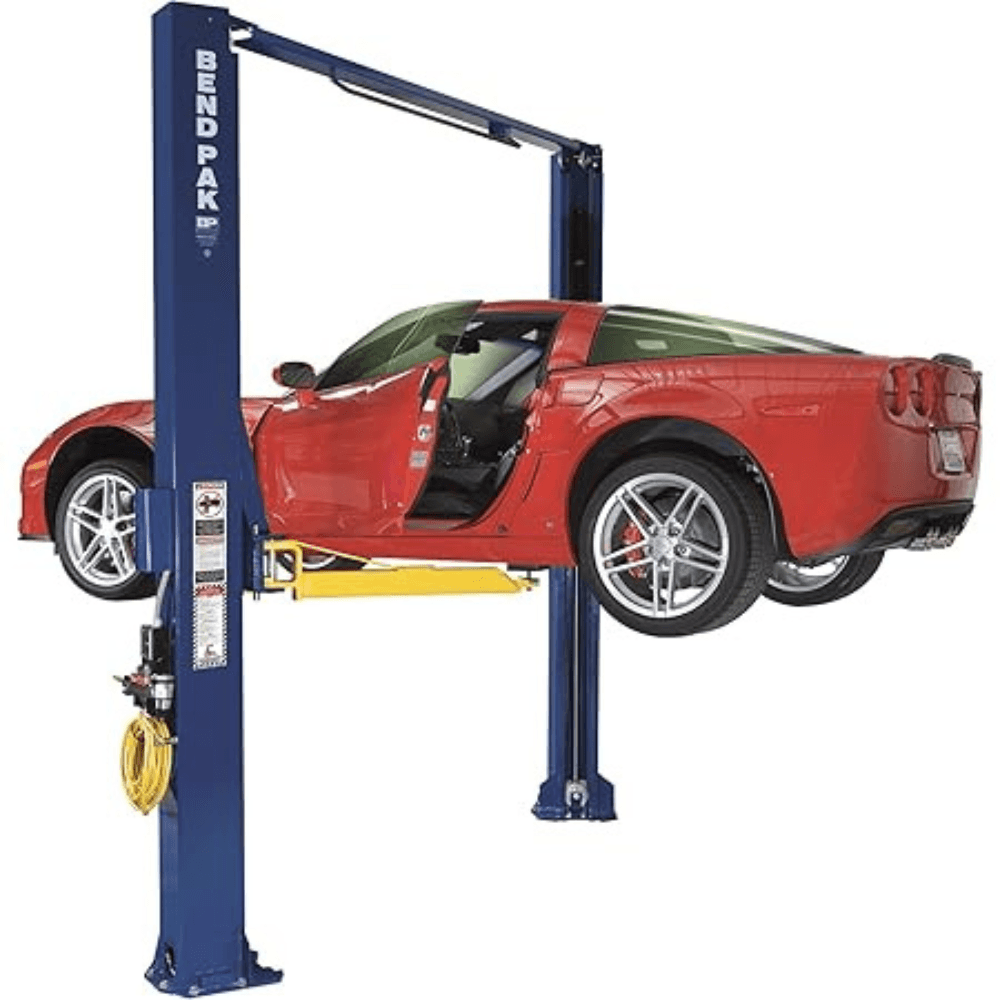

BendPak XPR-10AS-LP Two-Post Lift – 10,000 lb. Capacity (Asymmetric)
The BendPak XPR-10AS-LP is a high-performance asymmetric two-post lift, featuring exclusive Low-Pro™ arms designed for lowered sports cars and vehicles with lift points positioned at the extreme edges of the chassis. Engineered for professional garages and automotive service shops, this industrial-strength lift boasts cutting-edge technology, superior materials, and an impressive 10,000-lb. lifting capacity.
With expandable width configurations, dual hydraulic direct-drive cylinders, and a reinforced structure, the XPR-10AS-LP provides maximum efficiency, safety, and durability.
Key Features & Benefits
- 10,000 lb. Lifting Capacity – Suitable for cars, trucks, SUVs, and low-profile sports cars.

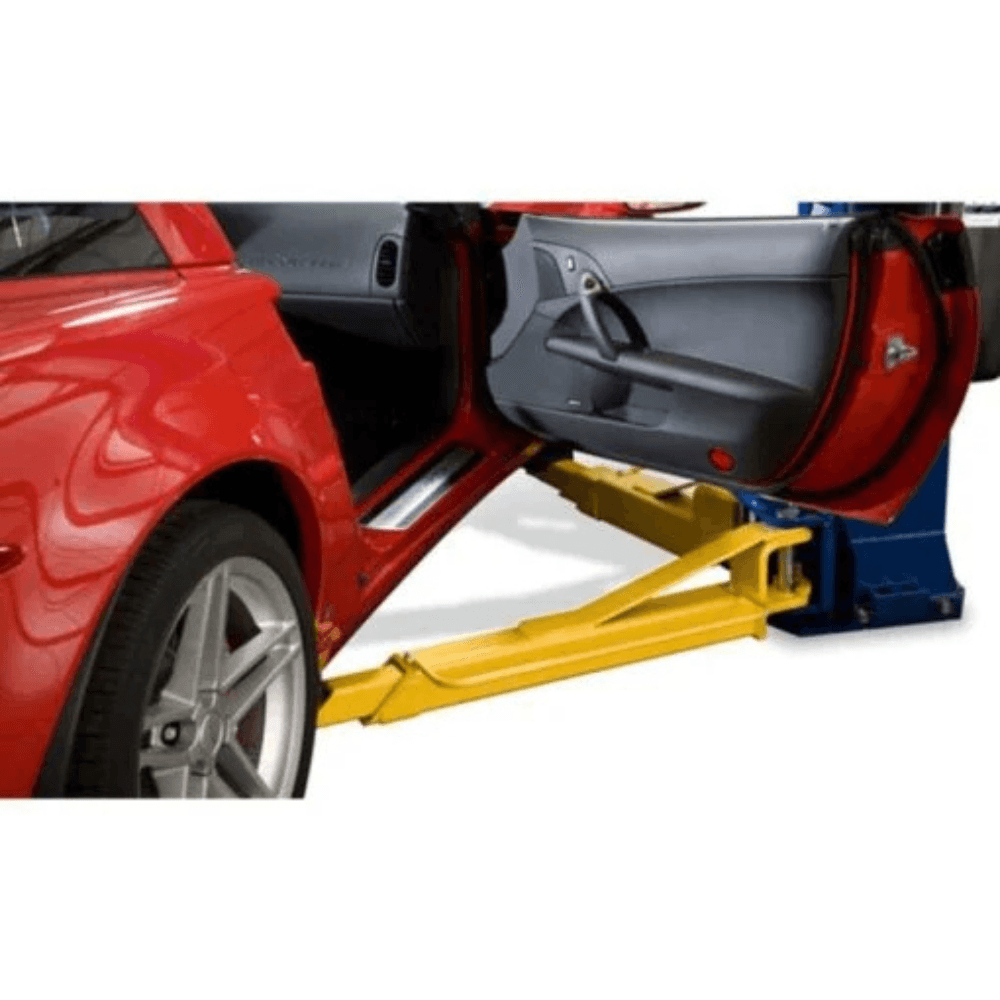

- Low-Pro™ Arms – Specially designed for lowered vehicles with extreme outer chassis lift points.
- Asymmetric Design – Allows easy vehicle entry/exit and improved workspace ergonomics.
- Expandable Top Beam – Configurable for wide or narrow drive-thru clearance options.
- Double-Telescoping Screw Pads – Enhances vehicle lifting versatility.
- Padded Overhead Safety Shutoff Bar – Prevents over-lifting and vehicle damage.
- Tru-Metric™ Arm Design – Allows more flexible arm positioning for varied vehicle sizes.
- 30° Rotated Single-Piece Columns – Provides increased stability and improved lifting angles.
- Single-Point Safety Release – Simplifies locking and unlocking of the lift.
- Dual Hydraulic Direct-Drive Cylinders – Ensures smooth, powerful, and maintenance-free lifting.
- Oversized 53″ Tall Carriage – Improves structural strength and durability.
- Electric / Hydraulic Power System – Enhances operational efficiency.
- 17″ x 19″ A36 Steel Base Plates – Provides maximum stability.
- Self-Lubricating Dura-Glide™ UHMW Polyethylene Bearings – Ensures smooth column operation.
- Heavy-Duty 1/2″ Aircraft-Quality Equalizer Cables – Reduces wear and enhances safety.
- Safety Locks Every 3″ in Each Column – Multiple height settings for added security.
- Automatic Arm Restraints – Keeps arms locked in place for added safety.
- Versatile Drop-In Contact Pads with Stackable Adapters – Expands lifting range and compatibility.
- 4-Piece 63mm Stackable Adapter Set Included – Allows lifting of various vehicle types.
- Meets or Exceeds ANSI/ALI ALCTV-2011 Safety Standards – Ensures top-tier safety and performance compliance.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Max Capacity (Front Axle) | 5,000 lbs. (2,268 kg) |
| Max Capacity (Rear Axle) | 5,000 lbs. (2,268 kg) |
| Height Overall | 145″ (3,683 mm) |
| Width Overall (Narrow Configuration) | 137″ (3,480 mm) |
| Width Overall (Wide Configuration) | 145″ (3,683 mm) |
| Width Outside of Columns (Narrow) | 133″ (3,378 mm) |
| Width Outside of Columns (Wide) | 141″ (3,581 mm) |
| Floor to Overhead Shutoff Switch | 141″ (3,581 mm) |
| Inside Columns (Narrow) | 104″ (2,642 mm) |
| Inside Columns (Wide) | 112″ (2,845 mm) |
| Front Arm Reach (Min – Max) | 23.5″ – 38.5″ (597 – 978 mm) |
| Rear Arm Reach (Min – Max) | 34.5″ – 54.5″ (876 – 1,384 mm) |
| Minimum Pad Height | 4.25″ – 6.75″ (108 – 171 mm) |
| Rise | 69″ (1,753 mm) |
| Max Lift Height (Pad Only) | 73″ – 75″ (1,854 – 1,905 mm) |
| Max Lift Height (With 3″ Adapter) | 75.5″ – 77.5″ (1,917 – 1,968 mm) |
| Drive-Thru Clearance (Narrow) | 94″ (2,388 mm) |
| Drive-Thru Clearance (Wide) | 102″ (2,591 mm) |
| Screw Pad Adjustment | 2″ (51 mm) |
| Motor | 220V AC / 60 Hz, Single Phase |
| Time to Full Rise | 45 Seconds |
| Max Load Per Arm | 2,500 lbs. (1,134 kg) |
Why Choose the BendPak XPR-10AS-LP?
The BendPak XPR-10AS-LP is the ultimate two-post lift for professional automotive shops and performance garages. With Low-Pro™ arms for lowered vehicles, a high-strength asymmetric design, and expandable width configurations, it offers superior performance, safety, and efficiency.
For high-precision vehicle lifting with industry-leading technology, the BendPak XPR-10AS-LP is the perfect choice!
