Atlas BP12000X Commercial Grade Baseplate 2-Post Lift
The Atlas BP12000X is a heavy-duty, commercial-grade two-post lift designed for lifting heavier vehicles while accommodating garages with limited ceiling height. With a 12,000 lb. capacity, this baseplate-style lift is ideal for professional automotive shops looking to lift large trucks, trailers, and commercial vehicles without requiring excessive overhead clearance.
This lift features oversized columns, symmetric three-stage arms, and a single-point lock release, providing exceptional strength, stability, and ease of operation. It also offers adjustable width settings, allowing for greater flexibility when servicing different vehicle types or optimizing garage space.
Key Features & Benefits
- 12,000 lb. Lifting Capacity – Supports heavy-duty trucks, vans, and commercial vehicles.
- Heavy-Duty, Commercial-Grade Construction – Built for long-term durability.
- Baseplate, Open-Top Style Lift – Perfect for garages with low ceilings.
- Overall Height: 122 1/2” (10′ 2 1/2”) – Requires minimal overhead clearance.
- Adjustable Width – Can be installed at two different width settings to accommodate wider vehicles.
- 3-Stage Symmetric Arms – Provides secure and balanced lifting for various vehicle sizes.
- Automatic Arm Restraints – Keeps the lifting arms locked in place for added safety.

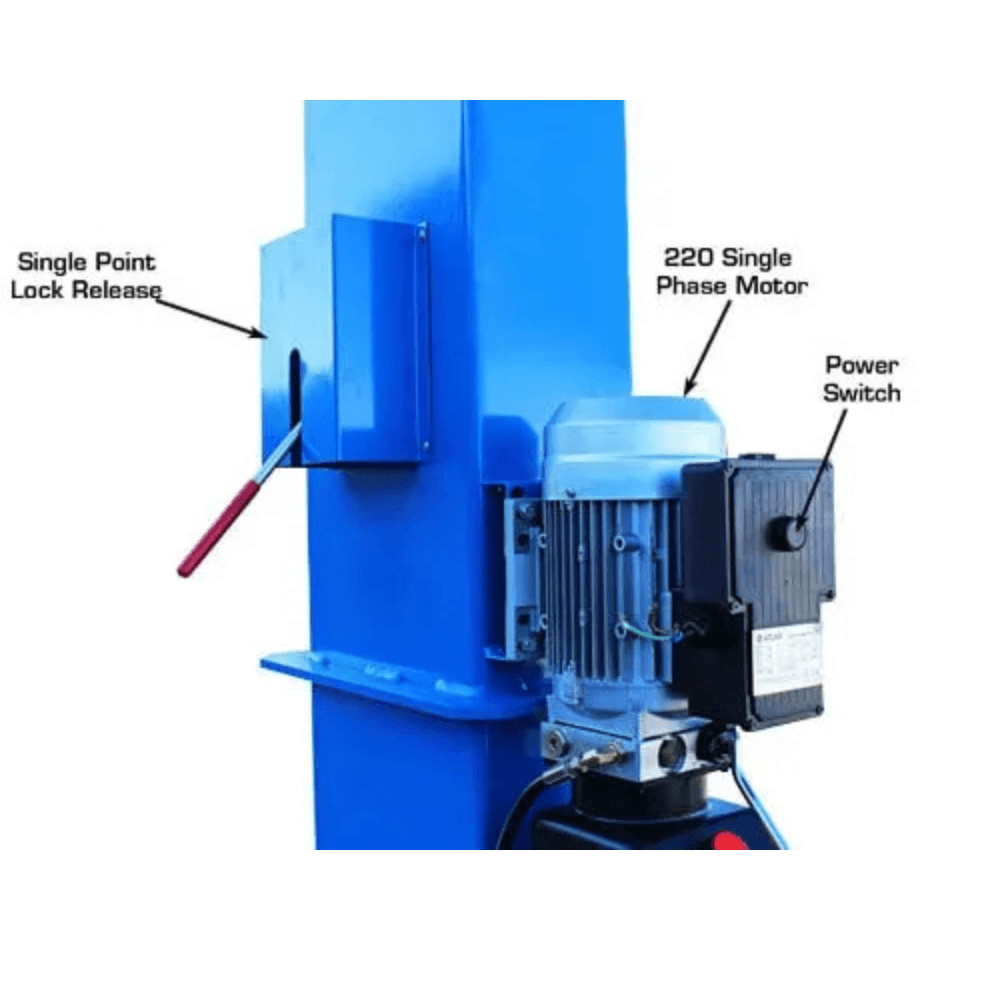

- Single-Point Lock Release – Simplifies lift operation by allowing the locks to be released from one location.
- Rubber Guards on Carriages – Protects vehicles from accidental contact with lift components.

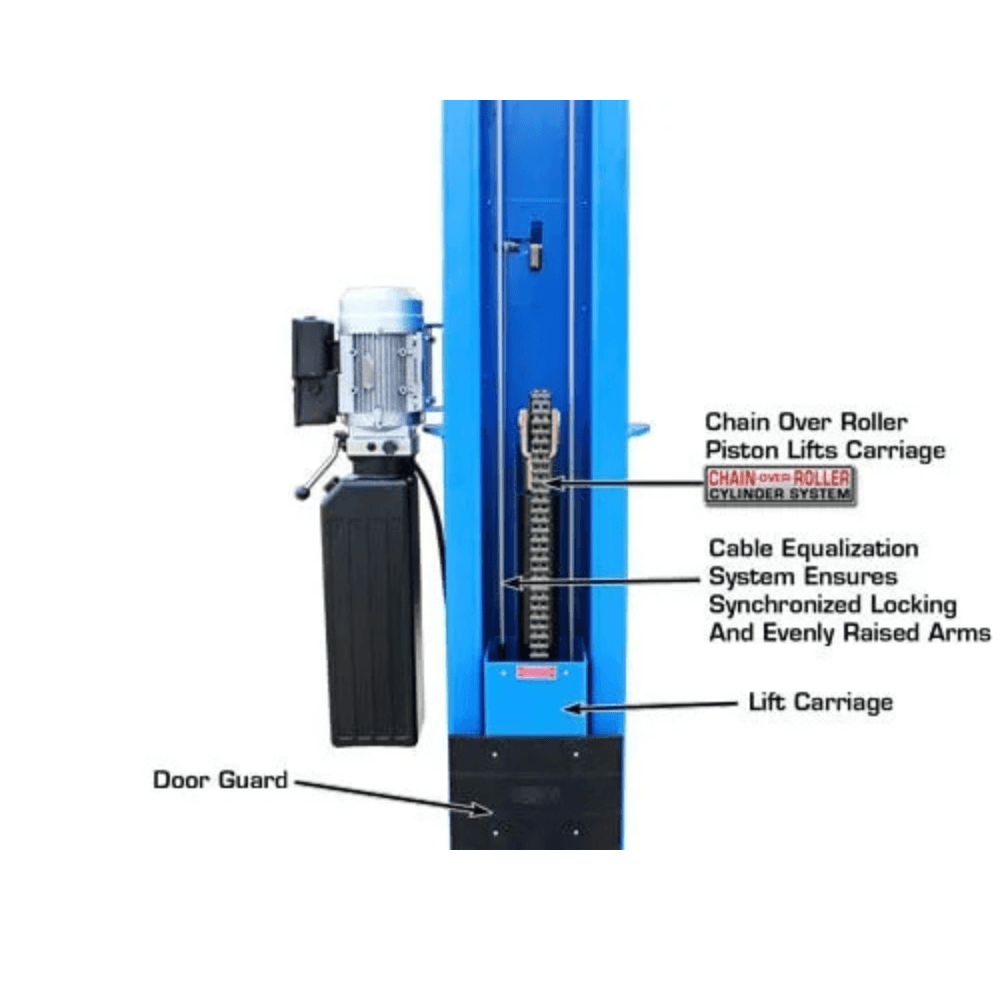

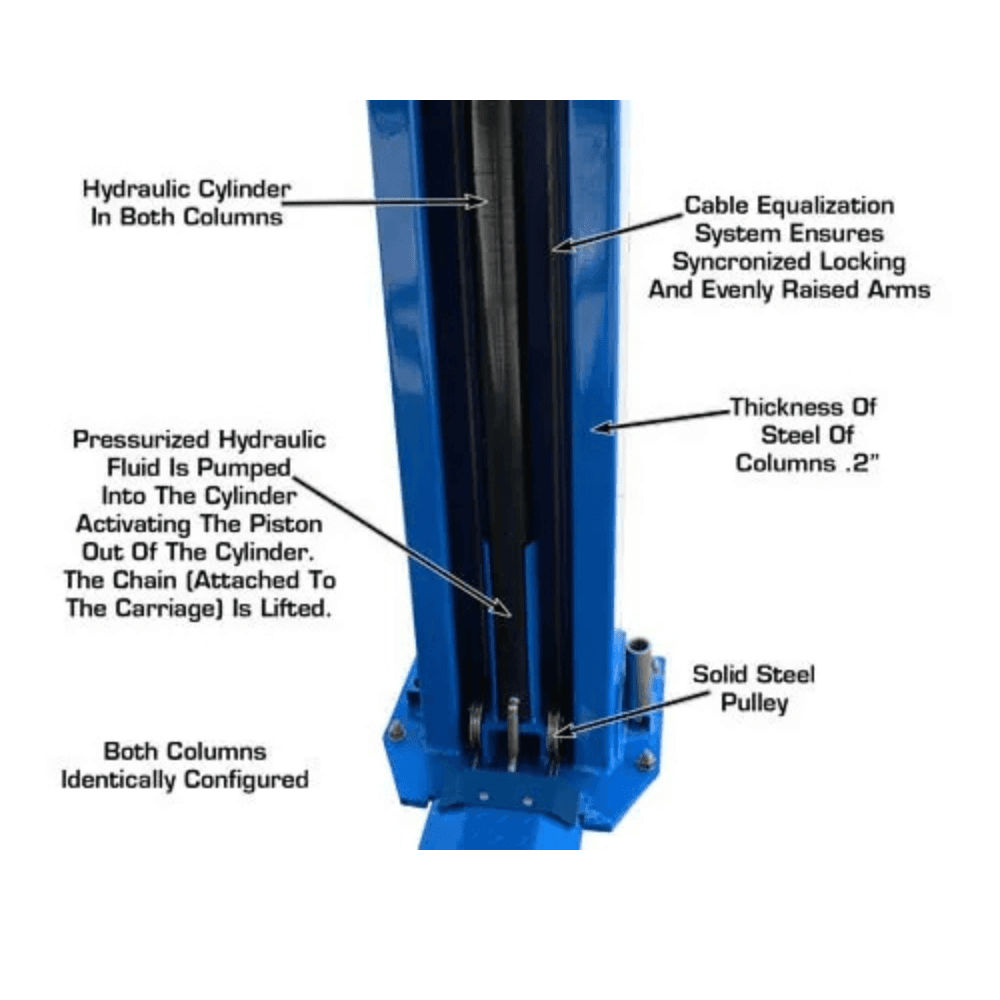

- Dual Hydraulic Chain-Over Cylinders – Ensures smooth, powerful lifting with minimal maintenance.
- Powder Coat Finish – Increases durability and resistance to wear and corrosion.
- Free 12-Piece Truck Adapter Set – Expands lift compatibility with various vehicle types.
- Mounting Hardware Included – Ensures a secure installation.
- Shipping Weight: 2,130 lbs. – Heavy-duty steel construction for superior strength.
- Warranty: 5 years structural, 2 years hydraulic (parts only).
- Freight Prepaid – Shipping cost is included in the price.
Why Choose the Atlas BP12000X?
The Atlas BP12000X is engineered for durability and performance, making it an excellent investment for commercial garages that need high lifting capacity and flexibility in a space-saving design.
Unlike overhead lifts, the baseplate design eliminates the need for additional overhead clearance, making it ideal for shops with low ceilings. The adjustable width settings allow for easy customization based on workspace needs, ensuring efficient lifting of a wide range of vehicles.
If you’re running a high-demand auto repair business or need a lift that can handle large, heavy-duty vehicles, the Atlas BP12000X is the perfect solution.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 12,000 lbs. |
| Overall Height | 122 1/2″ (10′ 2 1/2″) |
| Overall Floor Width | 149 3/8″ (12′ 5 3/8″) or 154 1/2” (12′ 10 1/2”) |
| Outside Column to Outside Column Width | 135 7/8″ (11′ 3 7/8″) or 141 1/4″ (11′ 9 1/4”) |
| Maximum Lift Height (Without Adapters) | 77 1/2″ |
| Maximum Lift Height (With Adapters) | 88 1/2″ |
| Minimum Arm Height | 4″ |
| Inside Column Width | 118 1/8” (9′ 10 1/8”) or 123 1/2″ (10′ 3 1/2″) |
| Drive-Thru Width | 103 5/8” (8′ 7 5/8”) or 109” (9′ 1”) |
| Column Size | 8 3/4″ x 14″ |
| Column Steel Thickness | 6mm |
| Baseplate Dimensions | 18 1/2″ x 21 1/2″ |
| Motor/Electrical Requirement | 220V, Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 2,130 lbs. |
| Adapter Heights | 4 at 2″, 4 at 3″, 4 at 6″ |
| Arm Hole/Adapter Peg Size | 1.5″ |
| Concrete Requirement | Minimum 6″ thick, 3000 psi rating |
Final Thoughts
The Atlas BP12000X is the ultimate solution for professional auto shops and fleet service centers that need high-capacity lifting in a low-ceiling workspace. With its strong, adjustable design, commercial-grade construction, and top-tier safety features, this lift ensures maximum efficiency and reliability.
Whether you’re lifting heavy-duty trucks, commercial vans, or trailers, the Atlas BP12000X delivers the strength, durability, and flexibility needed for a high-performance workspace.
