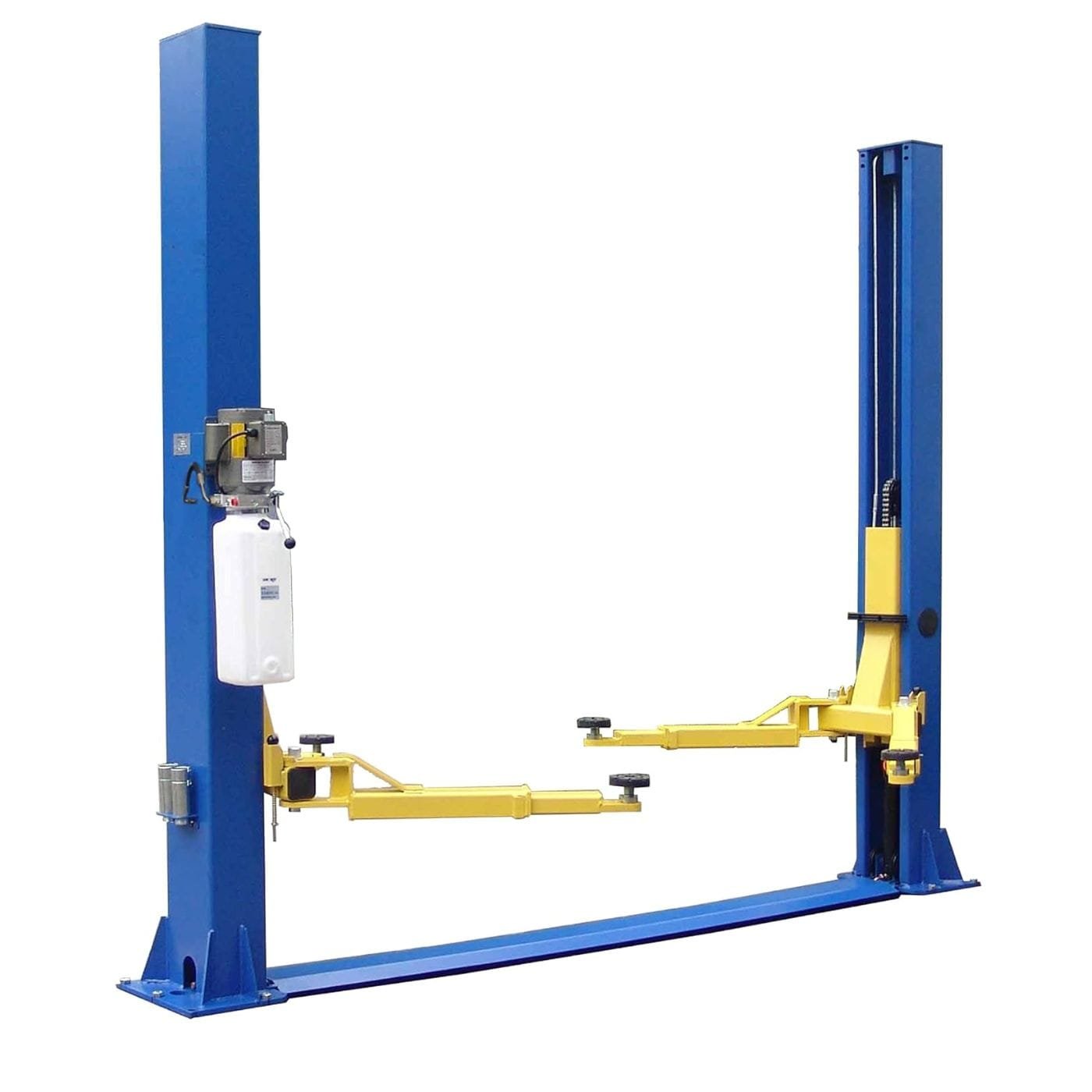

Symmetric design 9,000 lifting capacity. These auto lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you’d expect from a quality lift. Low Profile ‘drop-in’ Swivel Pads w/1-1/2” adjustable height. Reduced overall Width w/ front-side Power Unit mounting. Internal Hose Routing w/ integrated Hose Guards. Rubber Door Guards
Specifications – Capacity: 9,000 lbs., Overall Height: 111.9″, Width Overall w/Power Unit: 134.6″, Max Lift Height: 72″, Width Between Columns: 110.4″, Low Pad Height: 4″, Drive thru Clearance: 102″, Lifting speed: 50 sec, Asymmetric / Symmetric: Symmetric, Clear Floor / Floor Plate: Floor Plate, Font & Rear Arm Reach – min/max: 31″ – 45″, Long Arm Reach – min/max: Same, Cable Diameter: 3/8″, Column Size: 7-1/4″ x 10-7/8″, Column Steel Thickness: 5mm, Carriage Steel Thickness: 5mm, Arm Steel Thickness: 6mm, Power: 220V – 20 AMP – 1 PH, Ship Weight: 1,265 lbs.
Details
Symmetric design with a 9,000 lbs. lifting capacity
Features heavy-duty leaf chain, steel pulleys, and high-strength cable equalization system

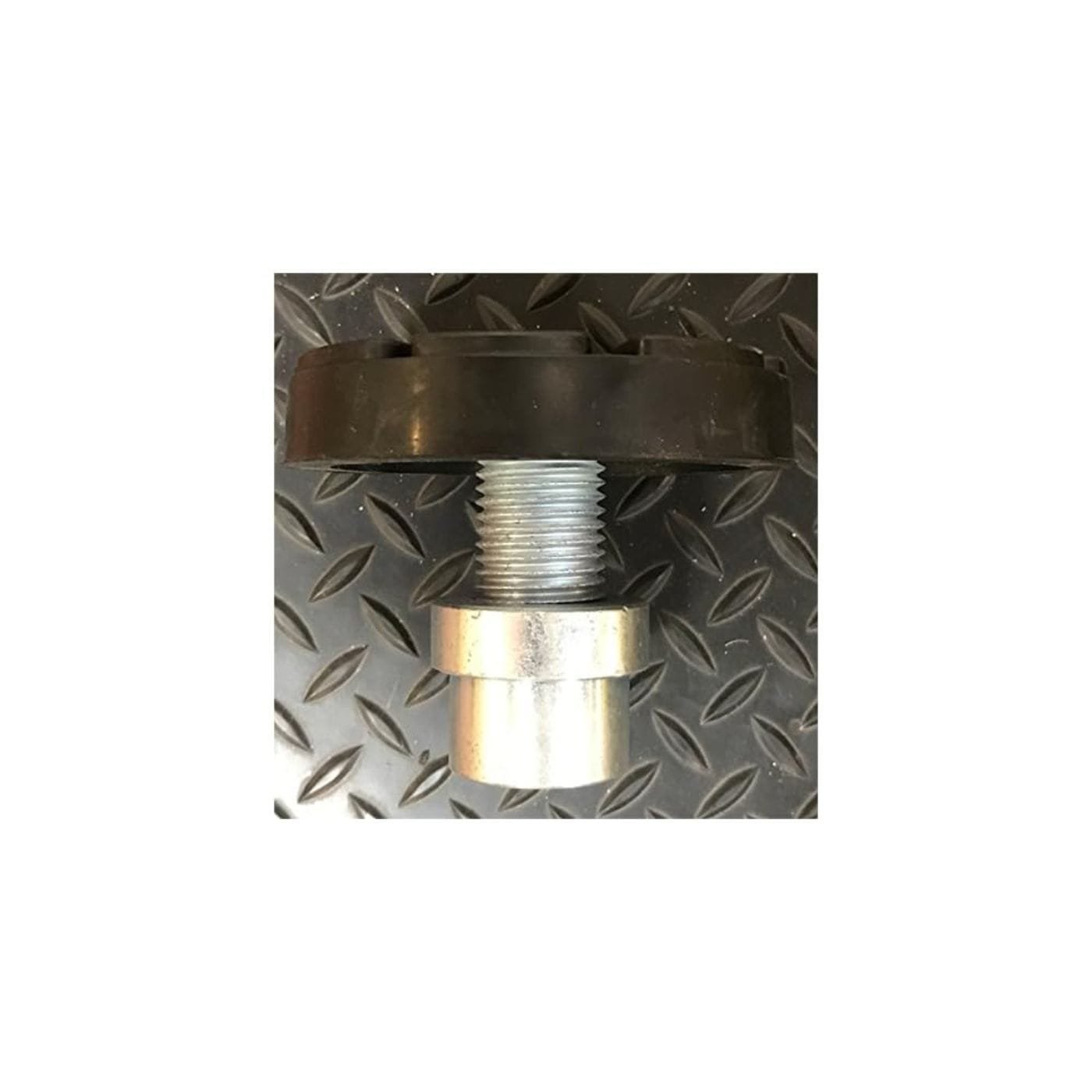

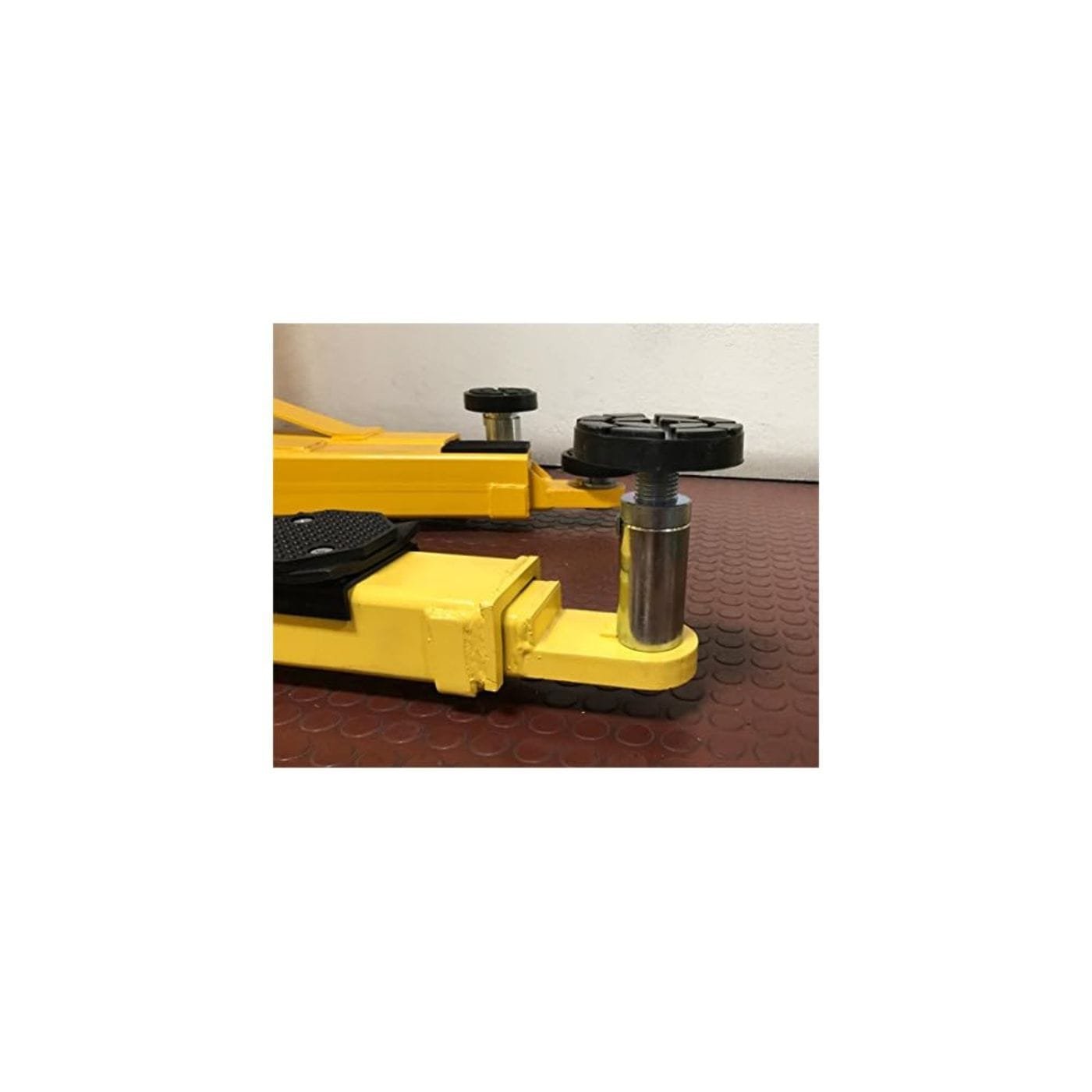

Low profile ‘drop-in’ swivel pads with 1-1/2” adjustable height
Reduced overall width with front-side power unit mounting and internal hose routing with integrated hose guards
Specifications: Overall height: 111.9, Width overall with power unit: 134.6, Max lift height: 72, Width between columns: 110.4, Low pad height: 4
Powered by 220V, 20 AMP, 1 PH with a ship weight of 1,265 lbs.
Load Capacity 9000 pound
Brand Auto Lift
Item Weight 1320 Pounds (598.74 kg)
Manufacturer Auto Lift
