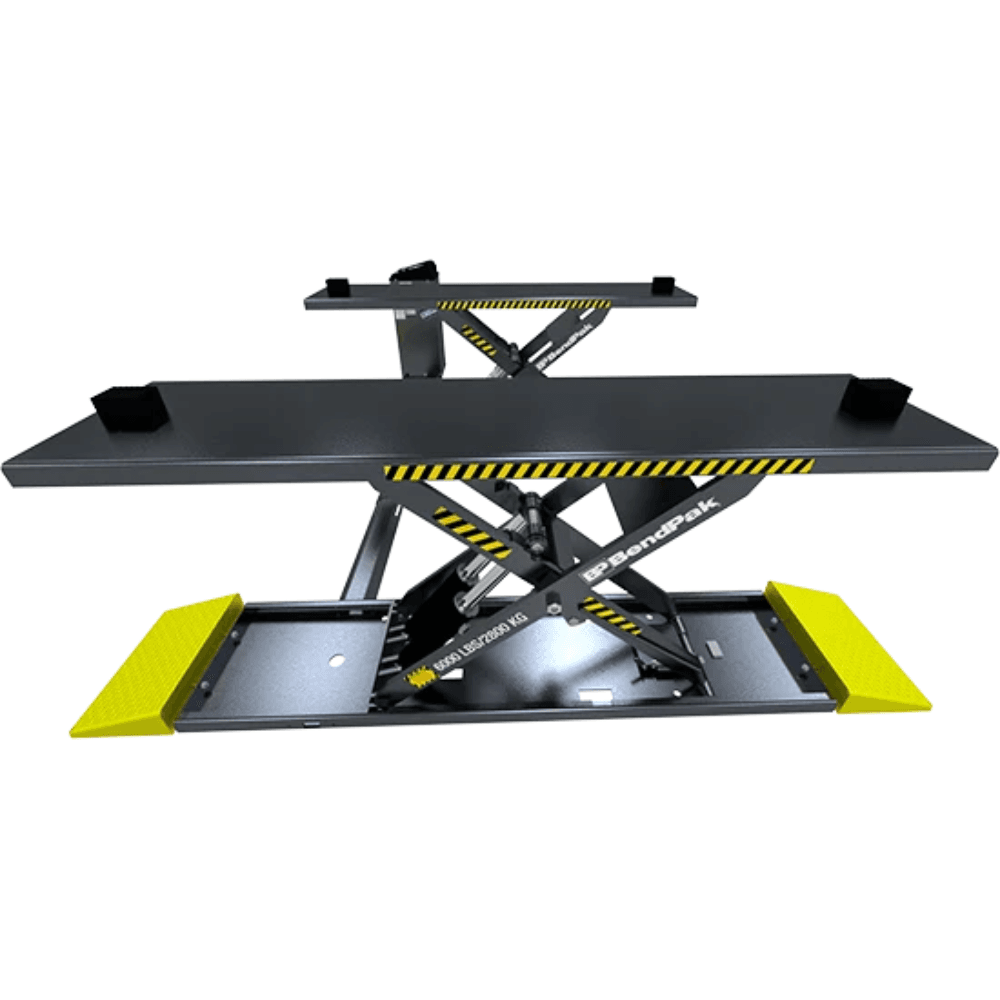

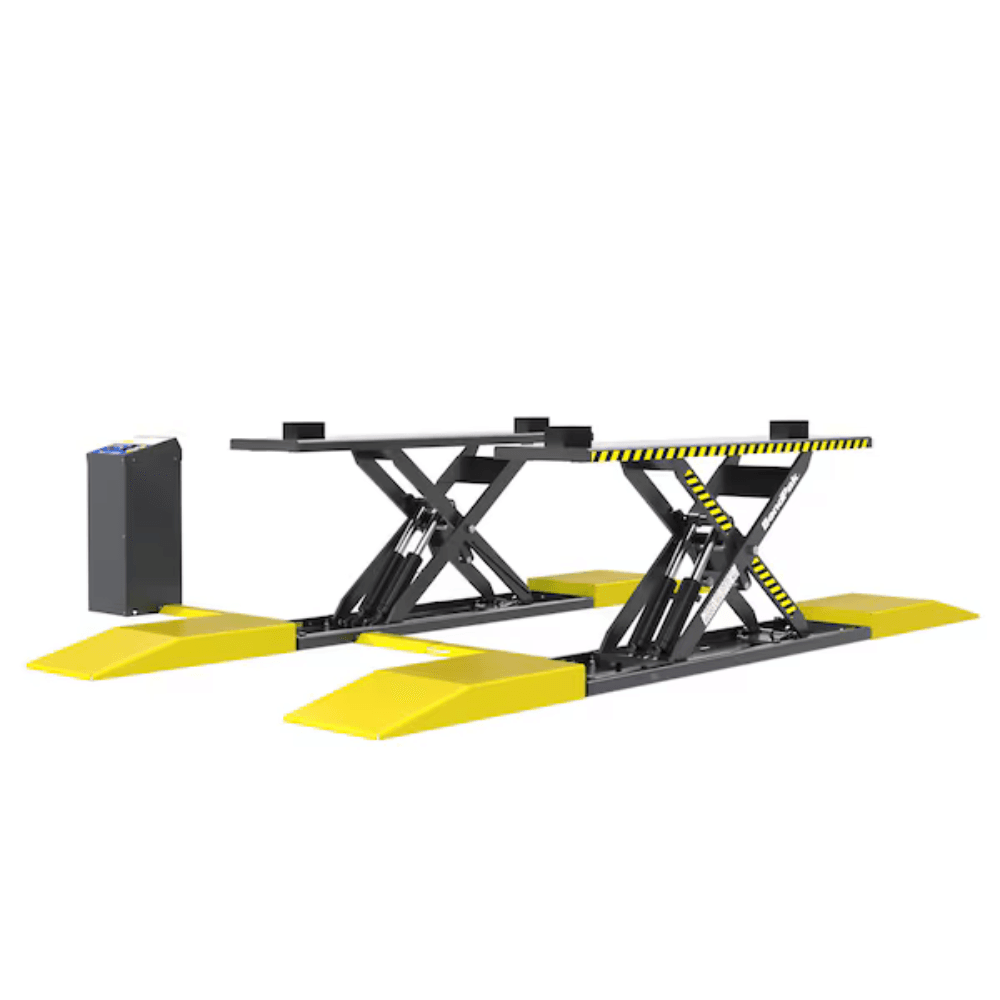

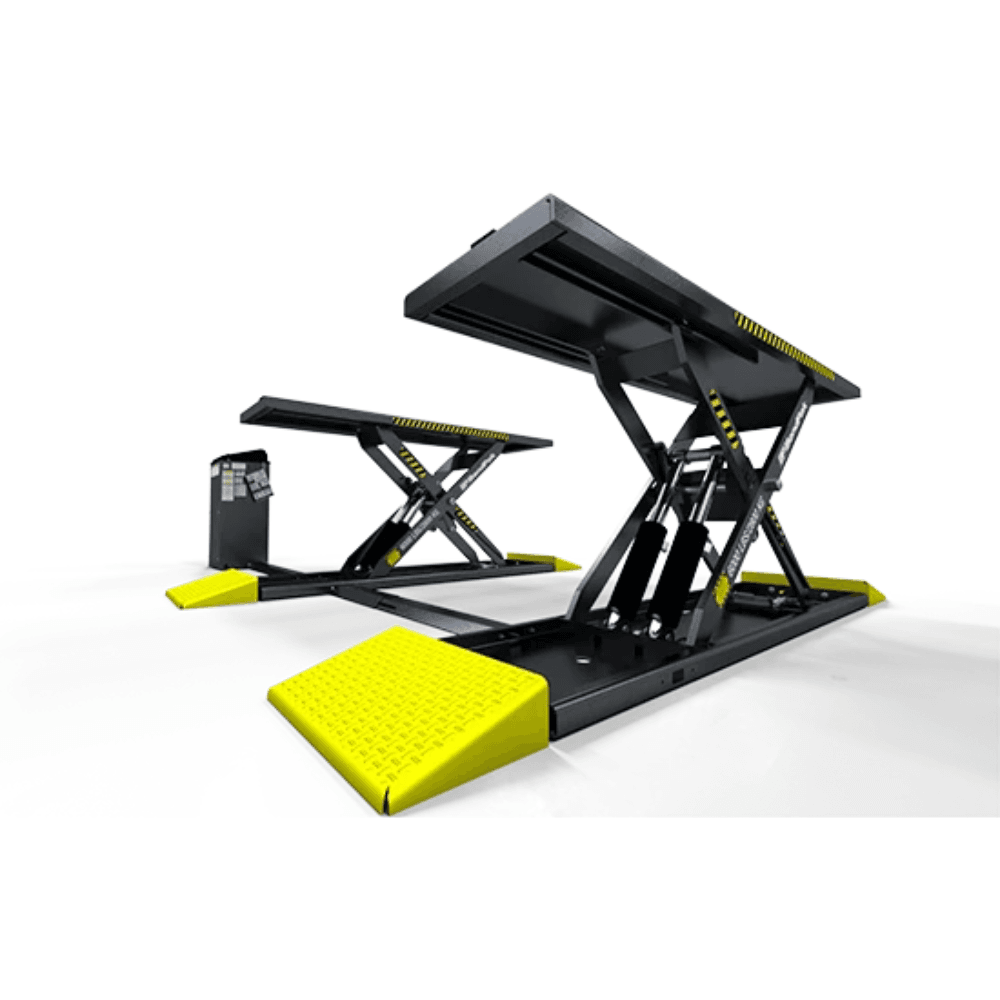

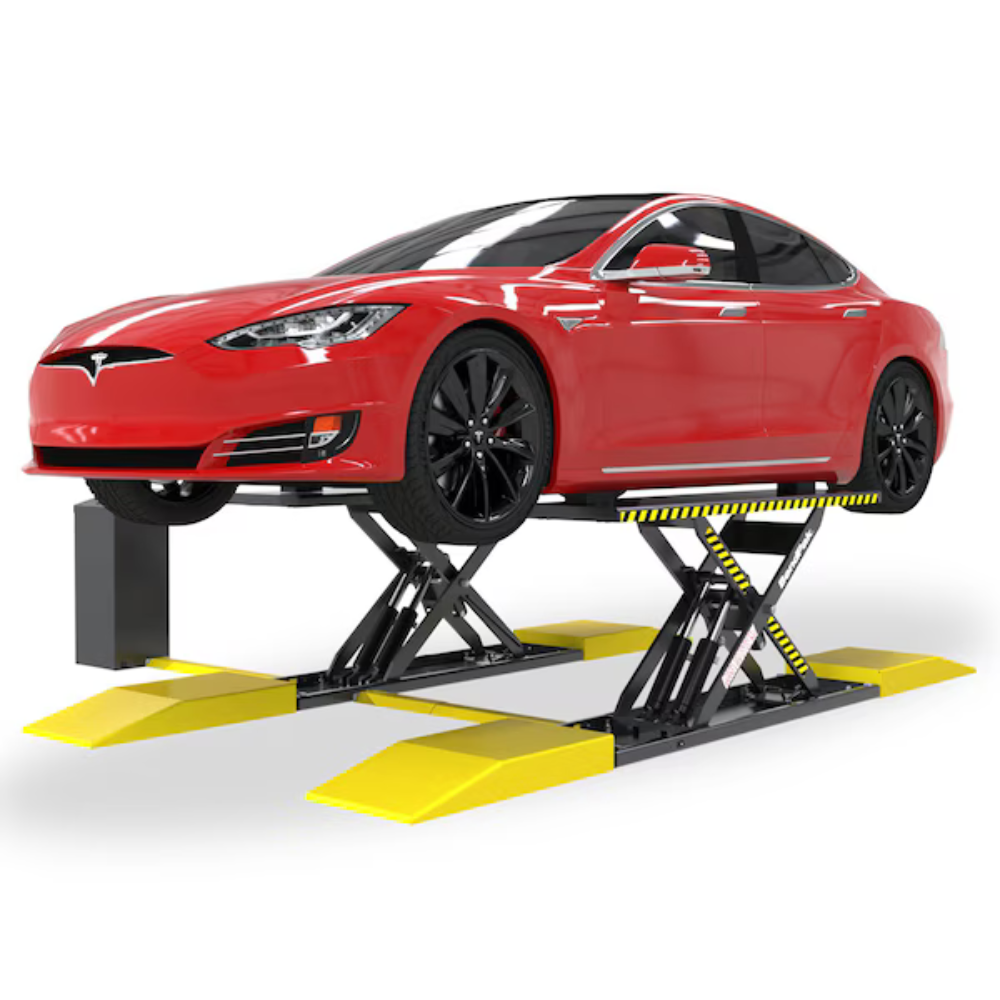

MDS-6EXT Extended Platform Mid-Rise Scissor Lift – 6,000 lb. Capacity
The MDS-6EXT is a high-performance, extended-platform mid-rise scissor lift, designed for versatile and space-saving vehicle lifting. With a 6,000 lb. lifting capacity and open-center design, this lift allows for easy access to undercar components, making it perfect for wheel, brake, and suspension service.
One of the key innovations of the MDS-6EXT is its pneumatic kicker system, which assists the initial lift phase. This air-powered boost overcomes the mechanical disadvantages of scissor lifts at lower heights, ensuring effortless lifting from a collapsed position.
Built with reinforced steel support bars, dual hydraulic and equalizing cylinders, and automatic safety locks, the MDS-6EXT delivers superior durability, safety, and reliability.
Key Features & Benefits
- 6,000 lb. Lifting Capacity – Ideal for cars, SUVs, and light-duty trucks.
- Extended Platform Design – Offers greater lifting versatility for longer vehicles.
- Pneumatic Kicker System – Provides extra lifting force for the first 6 inches, ensuring a stronger start from a collapsed position.
- Four Solid Steel-Scissor Frame Support Bars – Enhances stability and strength.

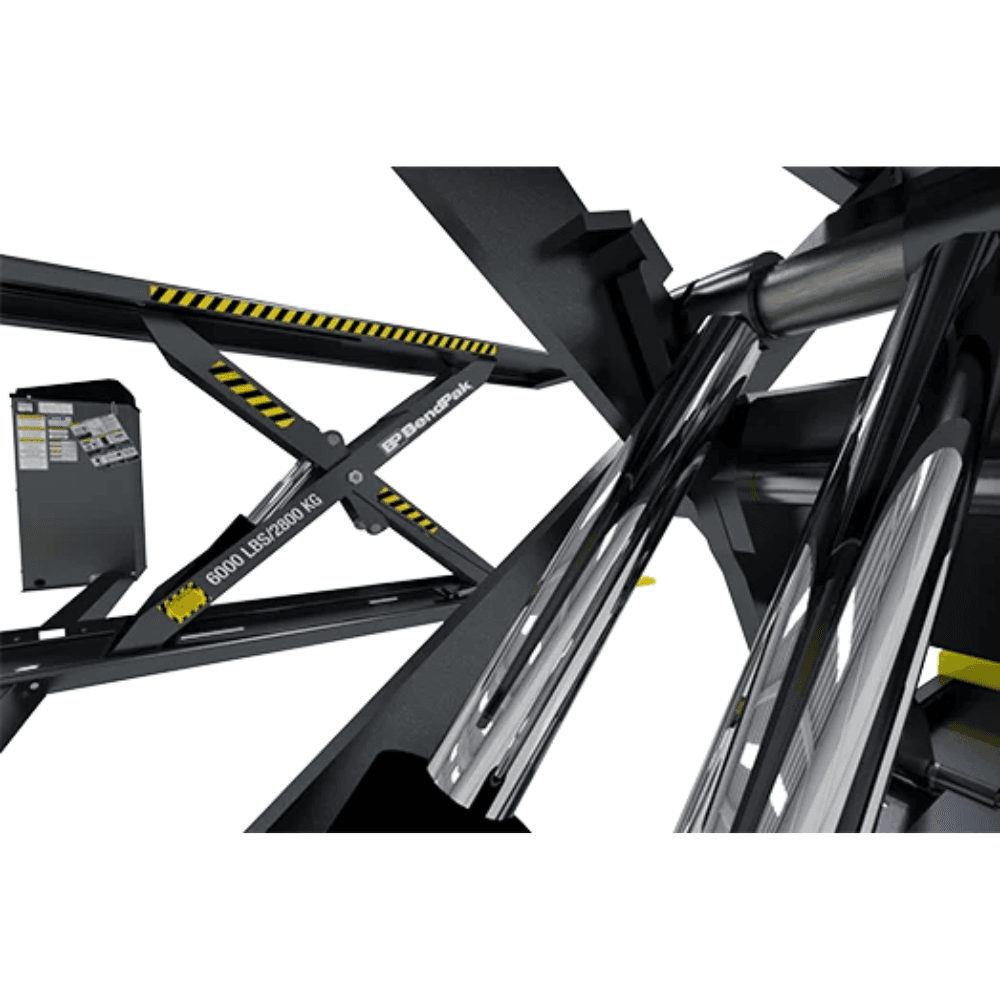

- Dual Master Hydraulic Cylinder & Dual Equalizing Cylinders – Ensures safe and level lifting.
- Automatic Solid-Steel Safety Lock Bars – Engages automatically during ascent.
- Stainless-Steel Pneumatic Cylinders – Releases safety locks during descent with the push of a button.
- Push-Button Safety Lock Release System –
- Operates away from the lift for improved safety and convenience.
- Eliminates the need to manually pull release bars or lock handles.
- Minimal Shop Space Requirement – Compact when lowered (5.25” min. height), making it ideal for small workshops and garages.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 6,000 lbs. |
| Lifting Height (Min.) | 5.25″ |
| Lifting Height (Max.) | 35″ |
| Width | 85″ |
| Length | 88″ |
| Voltage Requirement | 208-240V |
| Air Requirement | Min. 50 PSI, 10 CFM |
Why Choose the MDS-6EXT?
The MDS-6EXT is a premium mid-rise lift that offers a stronger, more stable lifting experience. With an innovative pneumatic kicker system, durable construction, and user-friendly controls, this lift is perfect for professionals and home mechanics looking for a space-efficient and powerful lifting solution.
If you need a high-quality, extended-platform mid-rise scissor lift with exceptional performance, the MDS-6EXT is the ideal choice!
